Sarolea Epervier
Saroléa was one of the most famous belgian motorcycle manufacturers installed at Herstal near Liège.
Early thirties, the young engineer Nicolas Lempereur developped a small two cylinders engine for aircraft.
Tested on the factory roof during october 1934, it was soon fitted on the first belgian HM-14 Pou du Ciel built especially for Saroléa by Mr Pregaldien. The first test flight happened unexpectedly on 22 august 1935. Soon after, it was also tested on the Tipsy S, the BAC Drone and the Saint-Hubert SBO.
Early thirties, the young engineer Nicolas Lempereur developped a small two cylinders engine for aircraft.
Tested on the factory roof during october 1934, it was soon fitted on the first belgian HM-14 Pou du Ciel built especially for Saroléa by Mr Pregaldien. The first test flight happened unexpectedly on 22 august 1935. Soon after, it was also tested on the Tipsy S, the BAC Drone and the Saint-Hubert SBO.
Tipsy 2S powered by Sarolea "Epervier"
Tipsy 2S powered by Sarolea "Epervier"
|
Epervier characteristics : |
Performances : |
| 2 cylinders flat twin air-cooled | Compression ration : 5,5 |
| Bore : 80,5 mm | Fuel consumption per hp/hour : 240gr |
| Stroke : 90 mm | Oil comsumption per hp/hour : 8gr |
| Capacity : 916 cm³ | Power: 27,5 hp at 3000 rpm |
| Total weight : 49,5 kg | |
| 2 magnetos ans 2 carburettors |
Tipsy 2S powered by Sarolea "Epervier"
Workshop
A workshop is a place where you will find lots of tools, but also humanity.
Georges Pradez was a radio presenter at the Belgian national radio as well as a talented scale modeler and an aviation fanatic. He was also an aviation storyteller and a source of ideas. From the creation of our association, he was always there when help was needed. When he passed away, we decided to give his name to BAPA’s workshop and a plate wearing his name was unveiled with members of his family and friends in attendance.
Georges Pradez was a radio presenter at the Belgian national radio as well as a talented scale modeler and an aviation fanatic. He was also an aviation storyteller and a source of ideas. From the creation of our association, he was always there when help was needed. When he passed away, we decided to give his name to BAPA’s workshop and a plate wearing his name was unveiled with members of his family and friends in attendance.

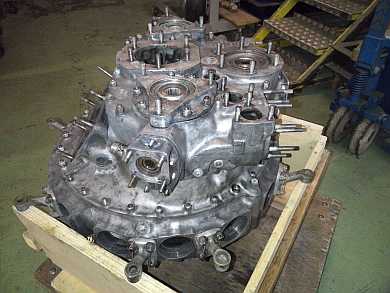

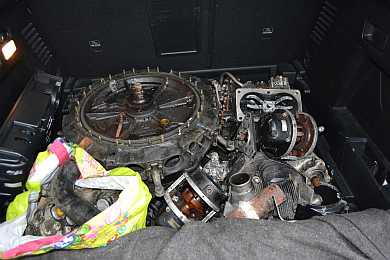

The engine as recieved, stored at the workshop
An exchange with Airventure Ltd allowed us to retrieve many missing parts and accessories.

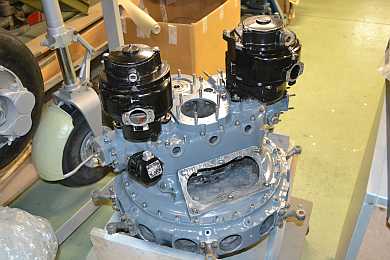

Above: The accessories box acquired via an exchange after soda blasting (at left) and painted with a few of the accessories installed, the two magneto are well visible above the carburator inlet.

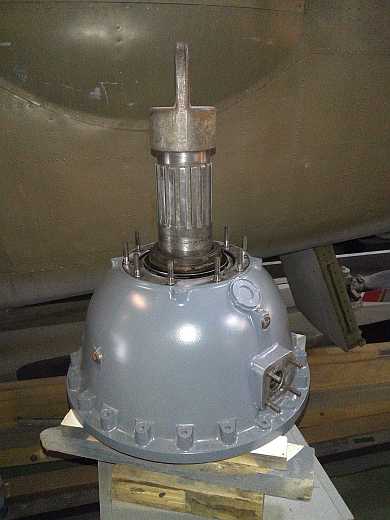

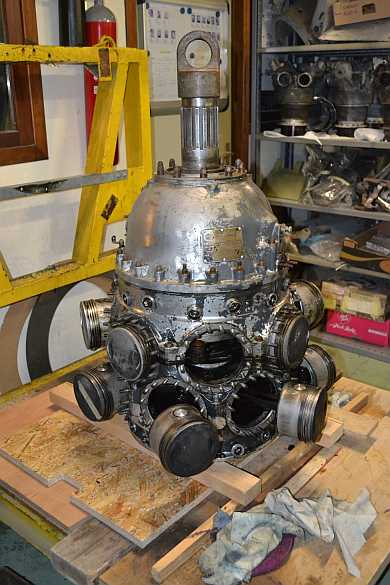

Above: All the cylinder have been removed, allowing a thourough inspection and proper cleaning of the engine. At right the reduction gearbox is in perfect condition and has been repainted after a thourough cleaning.

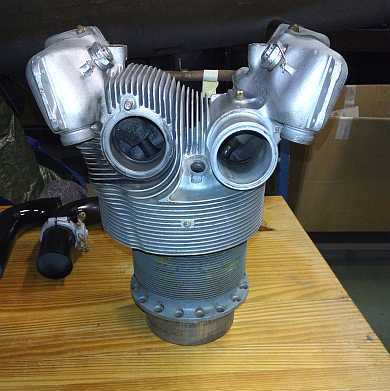

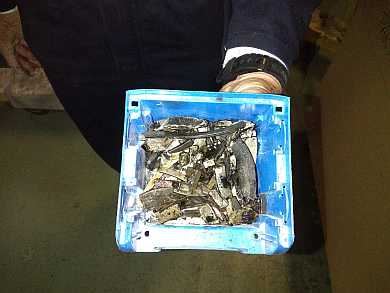

Above: The cylinder, dismantled and degreased,have been micro-abrasive blasted to remove the corrosion. At right what happens in an engine with improper lubrification: some piston started to desintegrate and pieces of metal have been found everywhere in the engine, the crankshaft is broken in two!
